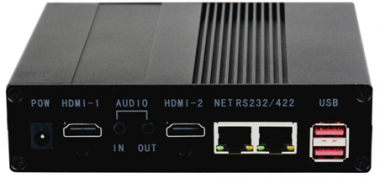

PM70MA/00-2H IP Matrix Switcher,with 2ch HDMI output, resolution up to 4K, powerful video wall management functions
PM70MA/00-2H Network matrix switcher is decoding matrix and ip decoder, can decode stream of onvif/H265/264 & RTSP, it is also a Video Wall Controller system with2ch HDMI output up to 4K resolution, perfect video wall management, including split, splicing, PIP, Plan, Cruise, etc. simple operation like analog system.
Product catalogSpecification Download fileOrder online
Product Feature
● Onvif & H265/H264 compatible
● Support network media input
● Support multiple resolution of output, can manual set output resolution.
● Output supports maximum 3840x2160@60Hz.
Support 4K, 1080P, 1080I, 720P, D1 video formats
● Support 10ch 4K or 80ch 1080P or 160ch 720P decoding and display.
● Support video-splitting output, up to 64 windows split on one monitor
● Support Cruise, Plan, split, splicing, etc. display mode.
● Support Plan configuration and management.
● Support intelligent connection.
● Support audio input and output
● Support OSD, title, time and warning messages can overlap on the displayed video
● Net client software offers ptz control & preview, operation set, video wall management, etc.
Specifications
|
Interface Parameter |
|
|
HDMI output |
2ch, up to 4K resolution |
|
Ethernet |
1, 100M/1000M adaptive RJ45 port |
|
Audio input |
1ch ,Ф3.5 earphone socket . |
|
Audio output |
1ch ,Ф3.5 earphone socket . |
|
Video Parameter |
|
|
network video decoding |
H.265/H.264 |
|
network video input |
4K,1080P,1080I,720P,D1 |
|
HDMI output resolution |
1024×768P@60Hz,1280×720P@60Hz, |
|
1366×768P@60Hz,1920×1080P@60Hz, |
|
|
3840×2160@60Hz (only HDMI 2 supports 3840*2160) |
|
|
video decode and display |
4CH 4K or 16ch 1080P, 64ch D1 |
|
monitor splicing |
2 monitor splicing |
|
monitor splitting and display |
Up to 64 splitting per HDMI output and 96ch video display at same time. |
|
OSD |
Supports Window, channel, label, etc. display |
|
Audio |
|
|
Audio Codec |
G.711,G.726,AAC Audio encode/decode. |
|
On/Mute |
Supports all channels and single channel quick setting individually. |
|
Audio input |
one module support 1CH audio encode, it can be set to open/close audio input. |
|
Management and Maintenance |
|
|
Basic function |
Multi-user login/logout; users operation permission definition; Supports video switching and controlling. |
|
Support Cruise, patrol, split, display mode management, Plan configuration and call. |
|
|
System management and configuration |
PETNET protocol available, Net client or platform can configure and manage, users operation permission definition & management |
|
Maintenance |
system log available. |
|
System status detection |
|
|
Fault detection and report. |
|
|
support online updating. |
|
|
Other |
|
|
time synchronization |
interior RTC, it could time automatic synchronization in cascading , offer standard port, to keep sync. To time server inside the system. |
|
alarm input |
support network alarm input |
|
alarm output |
Support alarm video linkage |
|
power supply |
AC 100-230V |
|
working temperature |
0～55℃ |
|
working humidity |
10%～90%； |
|

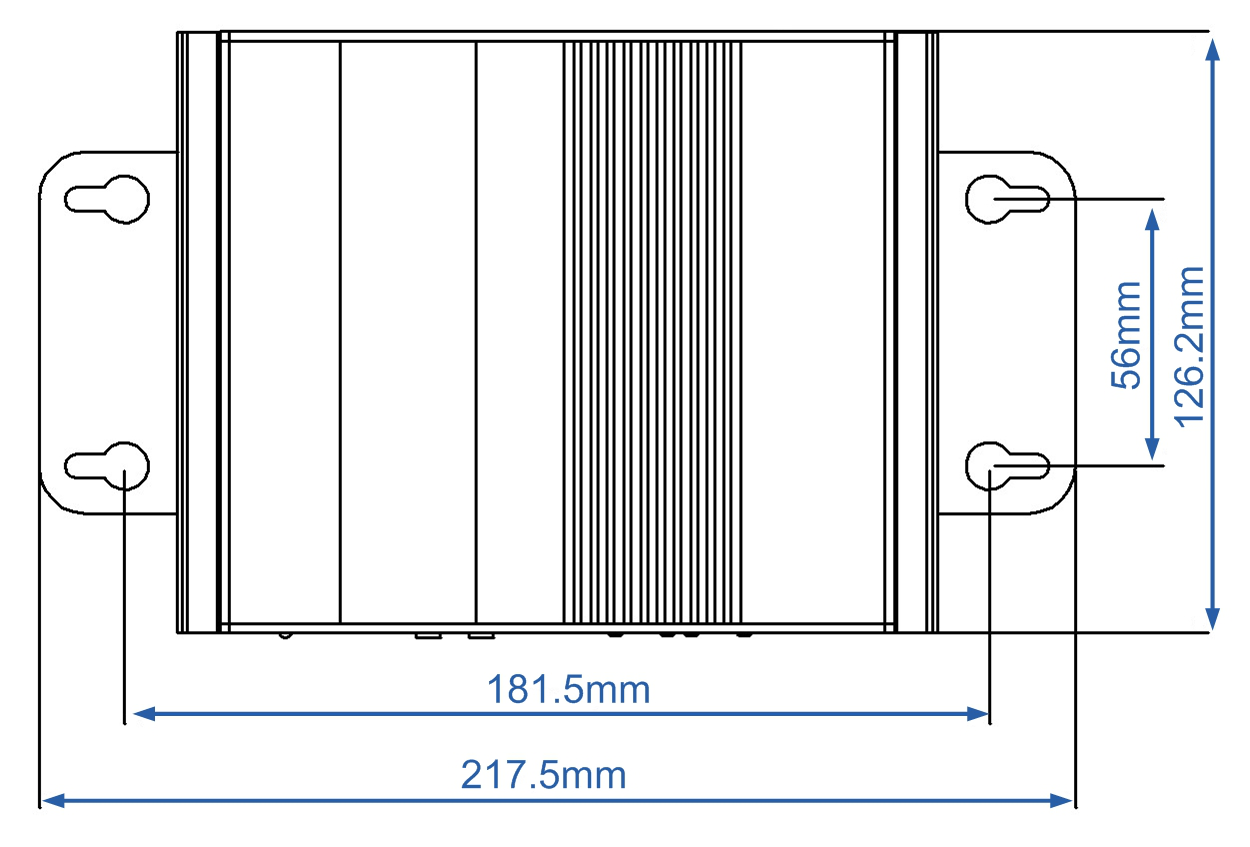

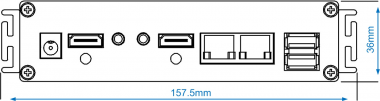

Dimension |
157.5*126.2*36.0mm |
|
Weight |
1.0KGS |
