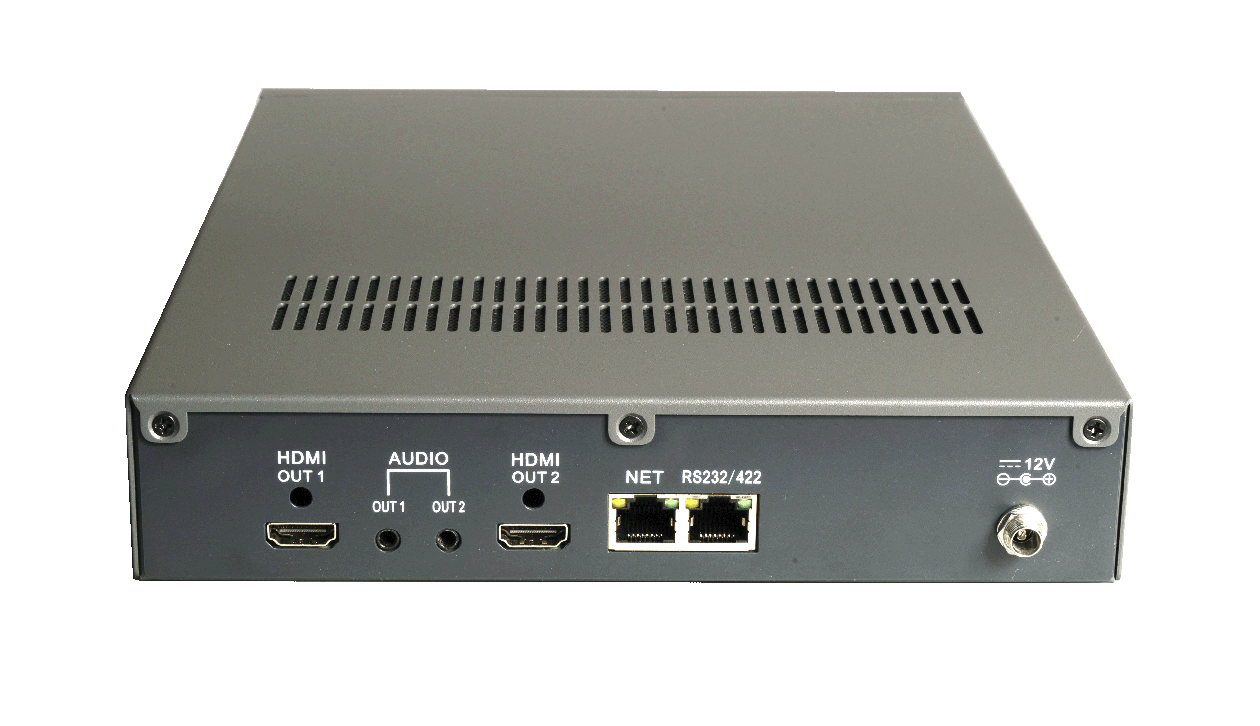

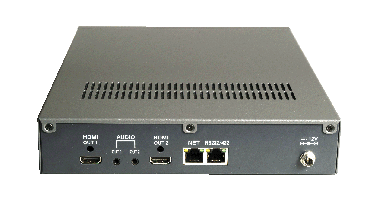

M60MA3H/00-2H IP Matrix Switcher,Decoder,powerful video wall management functions ,2ch HDMI output @ 5ch 4K or 20ch 1080p
PM60MA3H/00-2H Network matrix switcher is latest decoding matrix and IP decoder, video over ip, can decode stream of onvif/H265/264 & RTSP, it is also a Video Wall Controller system,offers 2ch HDMI output@ 5ch 4K decoding, perfect video wall management, including split, splicing, PIP, Plan, Cruise, etc. simple operation like analog system.
It can take stream from other platform on base of protocol or SDK.
Standalone Keyboard available for precise ptz control.
Product catalogSpecification Download fileOrder online
● Onvif & H265/H264 compatible
● Support network media input, video over ip.
● Support multiple resolution of output, it can manually set output resolution.
● Output supports maximum 3840x2160@30Hz.
● Support 4K, 1080P, 1080I, 720P, D1 video formats
● Support 5ch 4K or 20ch 1080P or 40ch 720P decoding and display.
● Support video-splitting output, up to 64 windows split on one monitor
● Support Cruise, Plan, split, splicing, etc. display mode.
● Support Plan configuration and management.
● Support intelligent connection.
● Support audio input and output
● support alarm linkage trigger
● Support OSD, title, time and warning messages can overlap on the displayed video
● Support multiple label program, can configure label position freely.
● Netclient software included.
| Physical | |
| output | 2ch HDMI |
| input | No physical input |
| HDMI output resolution |
1024×768P@60Hz,1280×720P@60Hz, 1366×768P@60Hz, 1920×1080P@30Hz, 3840×2160@30Hz |
| Video | |
| Video decoding | H.265,H.264 |
| Video stream resolution | 4K,1080P,1080I,720P,D1 |
| Decoding capability | can decode 5ch 4K or 20ch 1080p or 40ch 720p or 80ch D1. |
| Splicing |
2, it can splice the monitors connected on HDMI output. user-defined splicing. |
| Splitting | 1/4/6/8/9/16/25/64, and user-defined splitting |
| Windowing and Cruise |
support, it can set windowing on monitors to have maximum 128 layers' windowing. |
| OSD display |
it can display OSD info. including window number, channel number, label, etc. |
| Audio | |
| encoding and decoding standard | support G.711, G.726, ADPCM |
| Audio enable/mute | it can turn on all audio and it can set one channel by quick operation. |
| input | support audio embedded in HDMI input or individual input. |
| Maintenance | |
| Basic applications |
multiple user log in and log out, maximum 72 users on-line at same time . operation permission definition; Supports video switching and controlling. Support Segmentation display mode management. Automatic inspection, setting and call. Supports rollback playing. |
| System management and configuration |
PETNET protocol available, once integration,the third party can manage this decoder, configuration upload and reload, operation permission setting and management |
| Maintenance |
system log available. Fault detection and report. support online updating. |
| Port and connectors | |
| Ethernet | 1ch, 1000Mbps adaptive RJ45 port |
| Audio input | No physical input of audio |
| Audio output | 2ch,Ф3.5 socket |
| RS232 | none |
