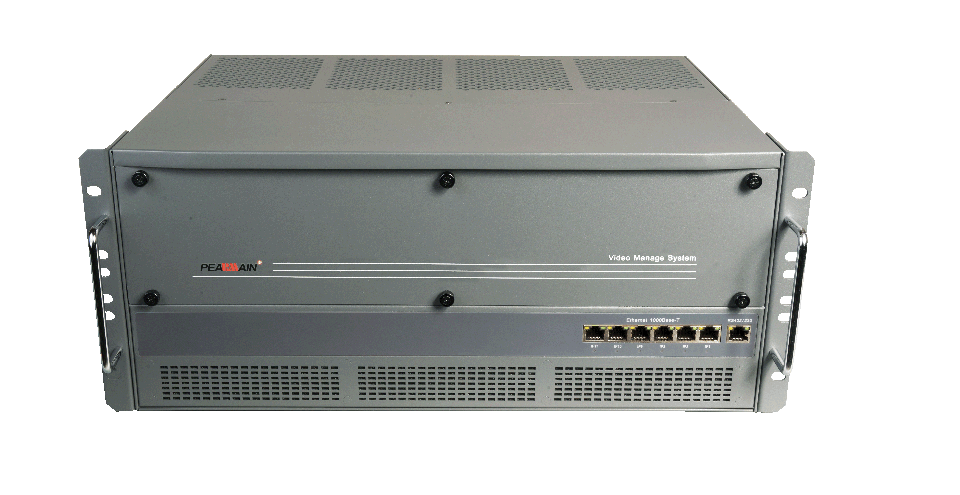

PM60MC3H/00-32H Network Matrix switcher, ip decoder with maximum 32ch HDMI output, video over ip

PM60MC3H/00-32H Network matrix switcher is latest decoding matrix and ip decoder, can decode stream of H265/264 & RTSP,it is also a Video Wall Controller system with modular chassis, could have up to 32ch HDMI output by one chassis.

Every modular could decode 25ch 4K or 100ch 1080p, perfect video wall management, including split, splicing, PIP, Plan,

Cruise, etc. simple operation like analog system.

https://youtu.be/-sP-xnabCVM

Product catalogSpecification Download fileOrder online

● Support for network media, H265/264, RTSP data input

● Support computer keyboard & Mouse direct input, U Flash storage.

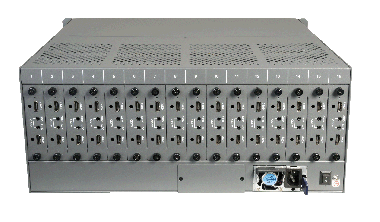

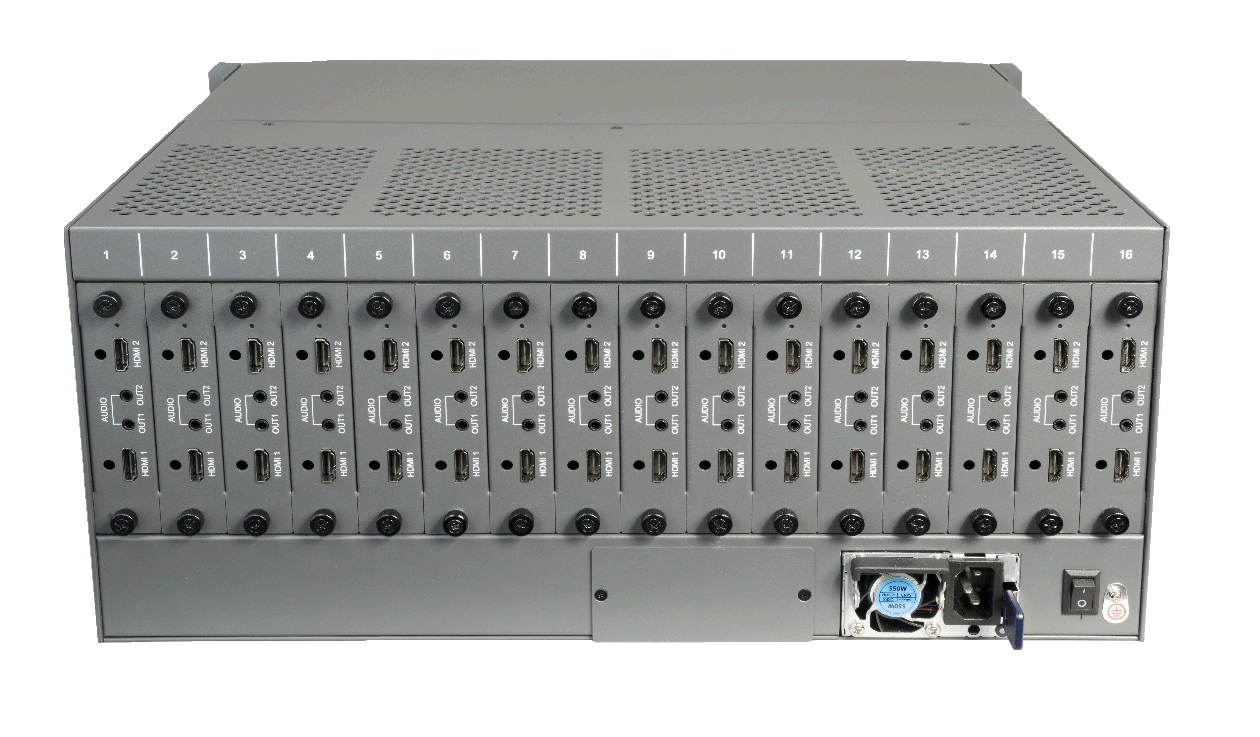

●  ● Modular chassis with 16 slots to have up to 32ch HDMI output.

o  ● Optional to have input modular of HDMI, HD SDI, BNC, etc.

● Support 16ch audio output.

● Each Video Output can identify optimum resolution automatically, or allow the user to change the output resolution manually.

● every modular can decode 25ch at 4K@30hz or 100ch at 1080p@30hz.

● Support video-splitting output, up to 8x8 splitting

● Support monitor splicing by any size ,splitting, windowing, zooming in & out

● Support Cruise, Plan, split, splicing, etc. display mode, Plan configuration and management

● Optimize video, it can make video stream smooth and improve network jammed .

● Furnish with Net client All-in-one software, Allows the user to graphically configure the Video wall and discover the IP cameras present on the local area network.


Model PM60MC3H/00-32H
Physical
output Up to 32ch HDMI by one chassis
input Optional physical input of HDMI, HD SDI, BNC, etc.
HDMI output resolution 1024×768P@60Hz,1280×720P@60Hz, 1366×768P@60Hz, 1920×1080P@30Hz, 3840×2160@30Hz
Video
Video decoding H.265,H.264
Video stream resolution 4K,1080P,1080I,720P,D1
Decoding capability One modular can decode 25ch 4K or100ch 1080p or 200ch 720p or 400ch D1.
Splicing 32 by one chassis, maximum 64 by 2 chassis cascading, it can splice the monitors connected on HDMI output. user-defined splicing.
Splitting 1/4/6/8/9/16/25/64, and user-defined splitting
Windowing and Cruise   support, it can set windowing on monitors to have maximum 128 layers' windowing.
OSD display it can display OSD info. including window number, channel number, label, etc.
Audio
encoding and decoding standard support G.711, G.726, ADPCM
Audio enable/mute it can turn on all audio and it can set one channel by quick operation.
input support audio embedded in HDMI input or individual input.
Maintenance
Basic applications multiple user log in and log out, maximum 72 users on-line at same time. operation permission definition; Supports video switching and controlling.
Support Segmentation display mode management.
Automatic inspection, setting and call. Supports rollback  playing.
 System management and configuration PETNET protocol available, once integration,the third party can manage this decoder, configuration upload and reload, operation permission setting and management
Maintenance system log available.
Fault detection and report.
support online updating.
Port and connectors
Ethernet 6ch, 1000Mbps adaptive RJ45 port，1 master and 5 slave
Audio input No physical input of audio
Audio output 32ch, one modular with 1 audio output of Ф3.5 socket
RS232 1
Other functions
Second development support, SDK available
Time synchronization internal RTC, it support automatic time sync. for multiple device.
offers PENET protocol, it can synchronize time of time server.
Alarm input support network alarm info. access.
Alarm process support automatic or manual alarm process.
Monitor control offers control port of monitor to control the monitors.
Stream self-adaptive Support stream self-adaptive function, it can close this function, it can automatically choose main/sub stream to output to monitors.
Stream media forwarding embedded Stream media forwarding, one camera takes steam one time.
smooth playing function support smooth playing function, it can automatically adjust and optimize stream stuck or pause caused by network transmission.
Decoding delay 150ms maximum
Power supply AC100V～230V.
 optional to have second power supply modular for stand by.
Power consumption 190W
Working temperature 0～50℃
Working humidity 10%～90%；
Dimension 480.0mm(W)×360.0mm（D）×190.0mm（H）
Weight 12KG
