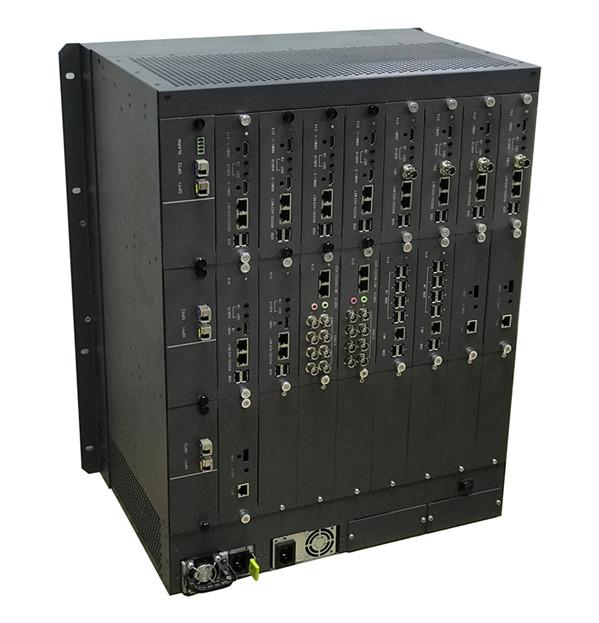

PM70MD Network Matrix switcher, ip decoder with maximum 128ch, video over ip hdmi output

PM70MD/00-128H Network Video Matrix switcher consists of 3 MD chassis cascaded to have 64 decoding board, offers 128ch HDMI output, optional input of HDMI, BNC or HD SDI, video over ip.

PM70MD supports H.265/264 and ONVIF, could decode and display video stream from different network, Net client software could configure all video stream and program Plan or Cruise to display these video on monitors.

Simplicity of operation is the key and the ability to call a camera into a selected pane or window on video screen was the goal in developing this IP matrix switcher.

The command structure is simple:〔1〕〔CAM〕+〔1〕〔MON〕on the IP keyboard/PTZ controller allows the users to switch camera 1 to Monitor 1, while the joystick allows for precise operation of the PTZ.

Besides, it could integrate audio, alarm to have complete solution.

Product catalogSpecification Download fileOrder online

◆ Support for network media, ONVIF, RTSP data input

◆ Support computer keyboard & Mouse direct input, U Flash storage.

◆ Support BNC (TVI,CVI,AHD or CVBS) / HDMI/HD SDI input,the HDMI input support 4K.

◆ Modular design, 12RU chassis with 24ch slots for 24 card/48ch HDMI outputs, besides it, there is 4RU chassis for 8 card, 4ch /2ch standalone available.

◆ Each matrix card supports 2ch HDMI output, every odd output support 4K resolution.

◆ Each Video Output can identify optimum resolution automatically, or allow the user to change the output resolution manually. Maximum supported resolution per card 3840x2160@30Hz.

◆ Support 4K, 1080P, 1080I, 720P, D1 video formats

◆ Support standard H.265 & H.264.

◆ Single module support 2ch at 4K or 16ch at 1080P or 32ch at 720P decoding and display.

◆ Support video-splitting output, up to 8x8 windows split on one monitor

◆ Support monitor splicing by any size ,splitting, windowing, zooming in & out

◆ Support audio input and output, also monitoring, broadcasting and intercom functions are supported

◆ Support OSD, title, time and warning messages can overlap on the displayed video

◆ Compatible with branded IPC without use of streaming media server

◆ Compatible with Onvif and RTSP protocols

◆ Matrix Client software could configure all parameter, perfect video wall management

◆ Video preview & PTZ control on ip matrix software

◆ iOS or android app available.


Matrix client software

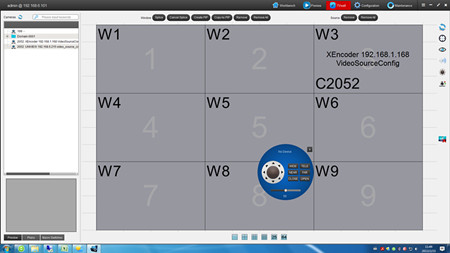

Allows the user to graphically configure the Video wall and discover the IP cameras present in LAN.

Video source Including ONVIF, RTSP, etc.

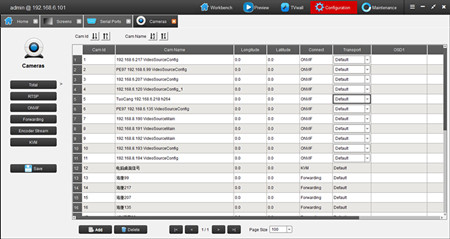

Camera list on left of Client software

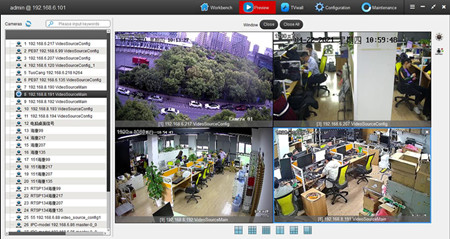

Video preview in Net client software

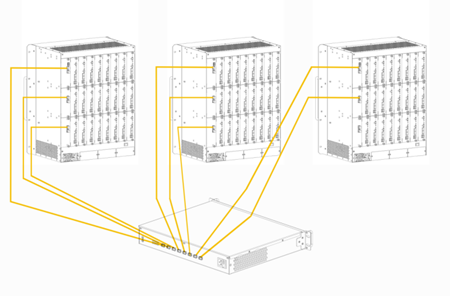

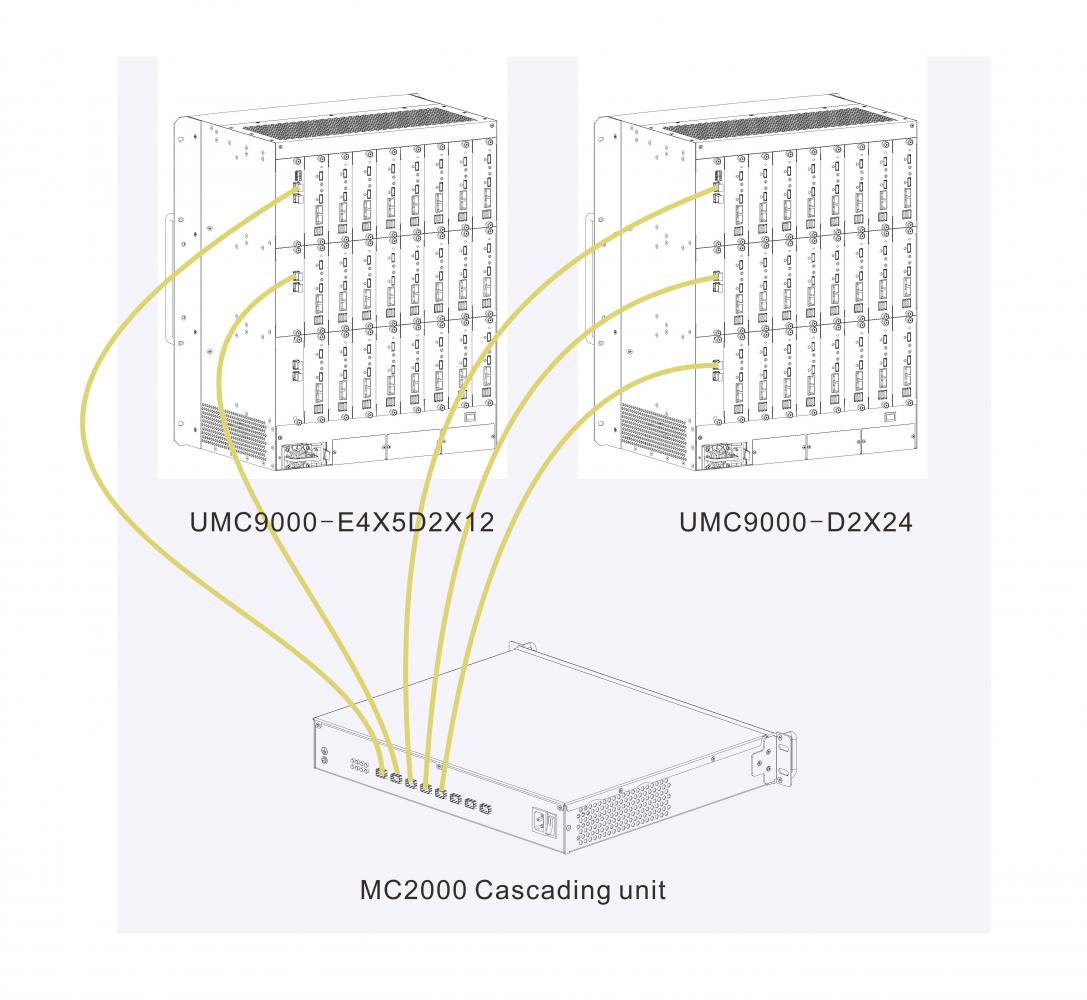

 3unit PM70MD network matrix could cascade to have maximum 128ch hdmi output.









Specifications

Interface Parameter
HDMI input Optional, 1CH/4CH HDMI input per card, support 4K video input
BNC input Optional, 8CH BNC input per card, support CVBS, TVI,CVI & AHD
HD SDI input Optional, 1CH HD SDI or 3G SDI input per card, support 1080p
HDMI output 2CH per card, odd port support 4K output
Ethernet 100M/1000M adaptive RJ45 port
Audio input 1ch ,Ф3.5 earphone socket .
Audio output 1ch ,Ф3.5 earphone socket .
alarm output support (rack construction)
USB2.0 support
RS232 support
Video Parameter
network video decoding H.265,H.264
network video input 4K,1080P,1080I,720P,D1
HDMI output resolution 1024×768P@60Hz,1280×720P@60Hz,
1366×768P@60Hz,1920×1080P@30Hz,
3840×2160@30Hz
video decoding and display one module support 2ch 4K or 16ch 1080P@30hz or 32ch 720P or 64ch D1
monitor splicing 128 monitor splicing by 3 MD chassis cascading
monitor splitting and display Support 4/9/16/25/32/48/64 splitting and display
OSD Supports Chinese/English OSD character superposition;
Time display, Monitor No. display.
Support titles overlaying, Maximum 16 titles overlay in one screen, maximum 40 characters per title;
Alarm information display.;
Audio Codec G.711,G.726,ADPCM Audio encode/decode.
On/Mute Supports all hannels and single channel quick setting individually.
Audio input one module support 1CH audio encode, it can be set to open/close audio input.
Management and Maintenance
Basic function Multi-user login/logout, Maximum supports 72 users online at same time, operation permission definition; Supports video switching and controlling.
Support Segmentation display mode management.
Automatic inspection, setting and call. Supports roll back playing.
System management and configuration PETNET protocol available, support web configure, configuration upload and reload, operation permission setting and management
Maintenance system log available. Fault detection and report.
support online updating.
Other
time synchronization interior RTC, it could time automatic synchronization, offer standard port, to keep sync. To time server inside the system.
alarm input support network alarm input
alarm output one module can provide with 1CH alarm switching value output and network alarm output
Alarm Processing Multiple alarm event processing mode
Screen control video screen control port available;
best resolution identification support best resolution identification
power supply one module Power supply: DC 12V                                 chassis power supply: AC 220
Power consumption one module 15W
working temperature 0～55℃
working humidity 10%～90%；
structure standard structure design
