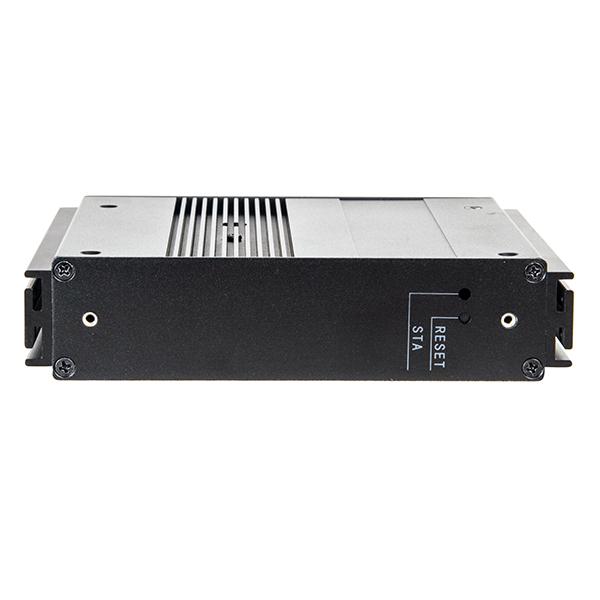

PM70DA/00-1H1S IP Matrix Switcher

PM70DA/00-1H1S ip matrix switcher is with 1ch hdmi and 1ch SDI output, which can decode 4k ip camera, audio singal, etc. compressed singal to be HD singal output to HD monitor or HD LCD.

H265/264 & onvif compatible.

Powerful video wall management functions.

support USB PC mouse/keyboard direct operation, video splitting, real-time audio, alarm.

SDK available to 3th party platform integration.

Product catalogSpecification Download fileOrder online

●   Support both active decoding and passive decoding mode;

●   Support platform to integrate management device in SDK mode;

●   Support customization.

●   Supports distributed and chassis modular management

●   Support ONVIF and RTSP Direct Connect front-end equipment decoding on the wall;

●   Support WEB way to visit, configure and manage;

●   Support local upgrade and remote upgrade

●    Each device has independent IP, easy for management and remote operation;

●   Support HDMI,and SDI output;

●   support video output split display, single screen support 4/6/8/9/10/12/16/25/30 split;

●   Support adaptive display device the best resolution, the maximum support 3840 × 2160 @ 60Hz;

●   Support 4K, 1080P, 1080I, 720P, D1 and other video formats;

●   Support standard H.265, H.264, MPEG4 stream;

●    Support audio input and output, can achieve monitoring, radio, intercom and other application requirements;


●
  Support OSD function, can be superimposed on the title, time, alarm


●   Support 2 channels 4K or 16 channels 1080P or 32 channels 720P decoding display;

port parameter

output

support 1CH HDMI and 1CH SDI output

Ethernet

1CH 1000M netport

audio input

1ch, Φ3.5 headphone jack

audio output

1ch, Φ3.5 headphone jack

USB2.0

2 CH

RS232/422

1 CH

video parameter

network video decoding

H.265H.264MPEG4

network video input

4K1080P1080I720PD1

HDMI output resolution

1024×768P@60Hz1280×720P@60Hz

1366×768P@60Hz1920×1080P@60Hz

3840×2160@60Hz

SDI output

support SDI output;

Video decode and display



4 CH 4K, 16CH 1080P,  32CH 720P or 64CH D1decode and display at most



monitor split and display



support 4/6/8/9/10/12/16/25/30 split

OSD information



support(windows, channels, titles, etc)



audio parameter



audio Codec

support G.711G.726ADPCM audio codec

open/mute

support global setting, or quick operation in one channel

audio input

support 2ch audio coding, can set open or close of audio input

management and maintenance

basic application

support multi-users Login/Logout

support splitting display mode operation;

system manage and configure

Provide protocol interface, manage and configure the device via platform or client

system maintenance

system log; fault detect and report; support online update

other

platform integration

support

system networking

support 3 level networking application at most

Time synchronization



have internal RTC function, support automatic time synchronization while cascading;

provide standard interface, and synchronize the time server in the system

alarm input

support network alarm message input

alarm output

support alarm linkage

max decode lag

250ms

power

12V2A DC

consumption

<24W

working temperature

045℃

working humidity

10%90%

mechanical structure

standard structure
