PM70DA/00-1H1C ip Matrix Switcher
PM70DA/00-1H1C ip matrix switcher is with 1ch hdmi and 1ch BNC output for video display, which can decode 4k ip camera, audio singal, etc. compressed singal to be HD singal output to HD monitor or HD LCD.
H265/264 & onvif compatible.
support USB PC mouse/keyboard direct operation, video splitting, real-time audio, alarm.
SDK available to 3th platform integration.
Product catalogSpecification Download fileOrder online
● Support both active decoding and passive decoding mode;
● Support platform to integrate management device in SDK mode;
● Support customization.
● Supports distributed and chassis modular management
● Support ONVIF and RTSP Direct Connect front-end equipment decoding on the wall;
● Support WEB way to visit, configure and manage;
● Support local upgrade and remote upgrade
● Each device has independent IP, easy for management and remote operation;
● Support HDMI,and other video signal output;
● support video output split display, single screen support 4/6/8/9/10/12/16/25/30 split;
● Support adaptive display device the best resolution, the maximum support 3840 × 2160 @ 60Hz;
● Support 4K, 1080P, 1080I, 720P, D1 and other video formats;
● Support standard H.265, H.264, MPEG4 stream;
● Support audio input and output, can achieve monitoring, radio, intercom and other application requirements;
● Support OSD function, can be superimposed on the title, time, alarm
● Support 2 channels 4K or 16 channels 1080P or 32 channels 720P decoding display;
|

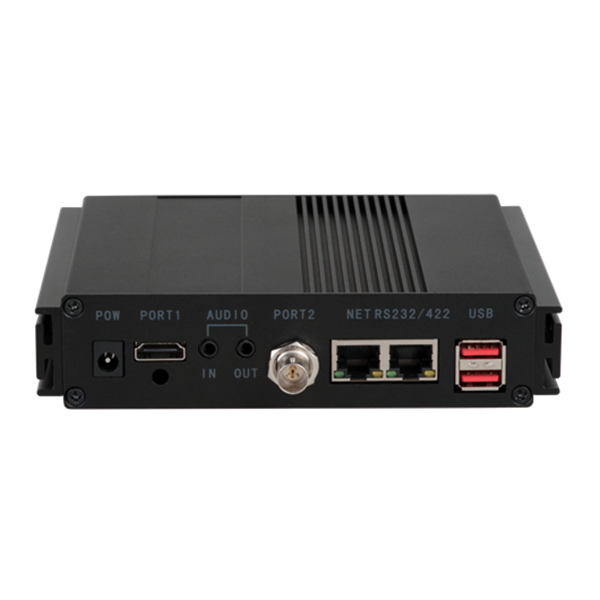

port parameter |
|
|
output |
support 1CH HDMI and 1CH BNC output |
|
Ethernet |
1CH 1000M netport |
|
audio input |
1ch, Φ3.5 headphone jack |
|
audio output |
1ch, Φ3.5 headphone jack |
|
USB2.0 |
2 CH |
|
RS232/422 |
1 CH |
|
video parameter |
|
|
network video decoding |
H.265、H.264、MPEG4； |
|
network video input |
4K、1080P、1080I、720P、D1； |
|
HDMI output resolution |
1024×768P@60Hz、1280×720P@60Hz、 1366×768P@60Hz、1920×1080P@60Hz、 3840×2160@60Hz； |
|
BNC output |
support CVBS output; |
|
Video decode and display |
4 CH 4K, 16CH 1080P, 32CH 720P or 64CH D1decode and display at most；
|
|
monitor split and display
|
support 4/6/8/9/10/12/16/25/30 split； |
|
OSD information
|
support(windows, channels, titles, etc)
|
|
audio parameter
|
|
|
audio Codec |
support G.711、G.726、ADPCM audio codec； |
|
open/mute |
support global setting, or quick operation in one channel |
|
audio input |
support 2ch audio coding, can set open or close of audio input |
|
management and maintenance |
|
|
basic application |
support multi-users Login/Logout support splitting display mode operation; |
|
system manage and configure |
Provide protocol interface, manage and configure the device via platform or client |
|
system maintenance |
system log; fault detect and report; support online update |
|
other |
|
|
platform integration |
support |
|
system networking |
support 3 level networking application at most |
|
Time synchronization
|
have internal RTC function, support automatic time synchronization while cascading; provide standard interface, and synchronize the time server in the system |
|
alarm input |
support network alarm message input |
|
alarm output |
support alarm linkage |
|
max decode lag |
250ms |
|
power |
12V2A DC； |
|
consumption |
<24W； |
|
working temperature |
0～45℃； |
|
working humidity |
10%～90%； |
|
mechanical structure |
standard structure； |
