In general

PM60MA3H/1H-9H Network matrix system is latest decoding matrix and network decoder, can decode HDMI input signal, video/audio stream from network cameras, platform of H265/264 & RTSP to display,it is also a Video Wall Controller system offers video cruise, salvo, slit, PIP, roaming, splicing, etc. Multiple display, compatible with H265,264 and support 4K resolution.

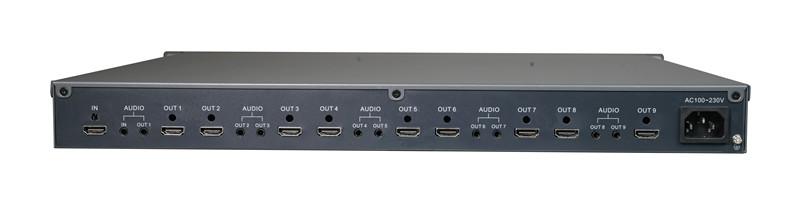

with1ch HDMI input and up to 10ch hdmi output by this chassis.

Visible netclient software and optional keyboard offers simple operation like analog system.

Features:

Hardware configuration

Ø 1U Industrial standard chassis design.

Ø Built-in high-bandwidth back board, high-speed network switch module, and streaming media forwarding module.

Ø 1ch HDMI input, can automatically identify input resolution, maximum support 3840*2160@30hz, downward compatibility.

Ø 1ch audio input by Ф3.5mm socket.

Ø 9ch audio output by Ф3.5mm socket.

System Functions

Ø Pure hardware design, embedded ARM processor, embedded Linux operating system, 7*24 hours stable continuous operation.

Ø Support remote or local configuration, data backup, and data recovery functions.

Ø Support remote or local upgrade and remote restart.

Ø Support data automatic synchronization, firmware version automatic sync.

Ø Support configuration data download, backup and upload.

Ø Support network stream load balance.

Ø provides dual network port hot backup to realize intelligent video migration

Ø has smooth video playback technology, which can effectively avoid the problem of jam caused by network transmission;

Ø with internal streaming media forwarding function

Ø with stream adaptive connection, automatically configure the best resolution stream according to the window size.

Matrix Functions

Ø Support to access the ip camera and stream compatible with ONVIF, RTSP, RTP.

Ø Support access of GB28181.

Ø Support platform software access management c, support to take stream from the platform

Ø Support signal source organization tree function, tree group management of various video signal sources, can classify and name different input signal source types, support keyword search, quickly find signal sources.

Ø Real time Video preview on visible net client.

Ø It can intuitively drag and drop signal switching, window opening, superposition, roaming, size adjustment, full screen, close and other functions, support the entire screen arbitrary custom layout, convenient to quickly achieve the users’ screen layout; Support screen real-time echo function, software screen layout and splicing screen fully synchronized, what you see is what you get.

Ø Support KVM control, it can remotely control the Tx of KVM in visible client.

Ø Support audio input and output, can achieve monitoring, broadcast, etc.applications.

Ø Support manual switch and automatic switch, includes patrol switch, group switch, segmentation switch.

Ø Support plan configuration, call and switch.

Ø Support through the alarm gateway access mainstream brand alarm host to achieve alarm linkage image pop-up display and alarm sound and light output .

Ø Support ptz control, it can control 8 directions of ptz, iris, zoom, speed, preset.

Ø Support OSD, It can superimpose camera title, system information, alarm, audio and other information, and flexibly configure font position, color, and size.

Decoding/splice functions

Ø Support to decode stream of H.265& H.264.

Ø Support multicast and unicast.

Ø Support split display at 1/4/6/8/9/10 /16/25/64 or user-defined split.

Ø Support entire screen splicing to display one video or user-defined splicing.

Ø Support window opening, pulling, cruise, roaming, etc.；

Ø Support control by keyboard, pad, etc.

Ø Support screen base map.
