PM60MA3H/00-8H IP Matrix Switcher,with 8ch HDMI output, can decode 20ch 4K, video over ip, powerful video wall management functions

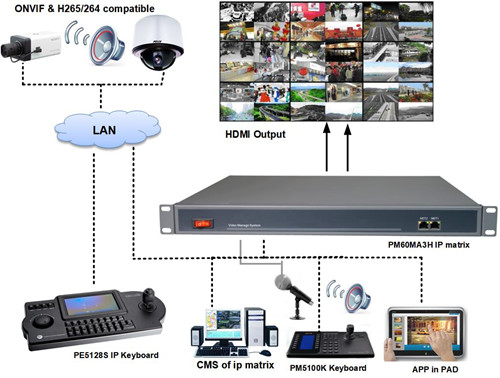

PM60MA3H/00-8H Network matrix switcher is latest decoding matrix, standalone, with 8ch HDMI output, can decode 20ch 4K, compatible with onvif/H265/264 & RTSP, perfect video wall management, including split, splicing, PIP, Plan, Cruise, etc. simple operation like analog system.

It can take stream from other platform on base of protocol or SDK.

Video over ip.

Product catalogSpecification Download fileOrder online

● Onvif & H265/H264 compatible

● Support network media input, video over ip.

● Support multiple resolution of output, it can manually set output resolution.

● Output supports maximum 3840x2160@30Hz.

 Support 4K, 1080P, 1080I, 720P, D1 video formats

● Support 20ch 4K or 80ch 1080P or 160ch 720P decoding and display.

● Support video-splitting output, up to 64 windows split on one monitor

● Support Cruise, Plan, split, splicing, etc. display mode.

● Support Plan configuration and management.

● Support intelligent connection.

● Support audio input and output

● support alarm linkage trigger

● Support OSD, title, time and warning messages can overlap on the displayed video

● Support multiple label program, can configure label position freely.
● Standard 1U chassis.



Specifications

Interface Parameter
HDMI input none
BNC input none

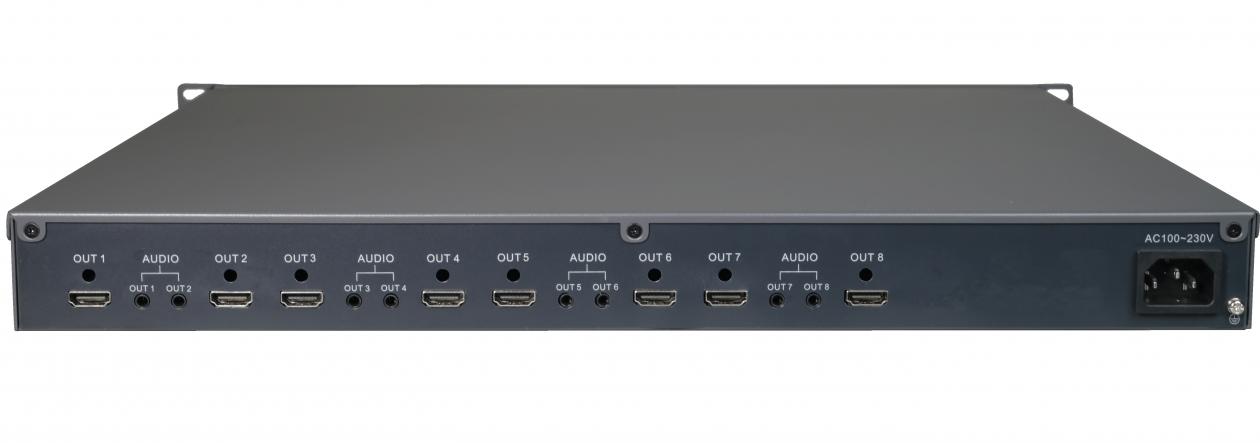

HDMI output 8CH, can decode 20ch 4K or 80ch 1080p.
Ethernet 2ch, 100M/1000M adaptive RJ45 port
Audio input  no physical input of alarm
Audio output 8ch ,Ф3.5 earphone socket .
alarm output  support network alarm process.
USB2.0 support
RS232 support
Video Parameter
network video decoding H.265,H.264
network video input 4K,1080P,1080I,720P,D1
HDMI output resolution 1024×768P@60Hz,1280×720P@60Hz,
1366×768P@60Hz,1920×1080P@30Hz,
3840×2160@30Hz
video decode and display  support 20ch 4K or 80ch 1080P@30hz or 160ch 720P or 320ch D1
monitor splicing 8 monitor splicing
monitor splitting and display Support 4/9/16/25/32/48/64 splitting and display
OSD Supports Chinese/English OSD character superposition;
Time display, Monitor No. display.
Support titles overlaying, Maximum 16 titles overlay in one screen, maximum 40 characters per title;
Alarm information display.;
Audio Codec G.711,G.726,ADPCM Audio encode/decode.
On/Mute Supports all channels and single channel quick setting individually.
Audio input  no physical audio input, support audio input in stream.
Management and Maintenance
Basic function

Multi-user login/logout, Maximum supports 72 users online at same time, operation permission definition; Supports video switching and controlling.
Support Segmentation display mode management.
Automatic inspection, setting and call. Supports rollback playing.


System management and configuration PETNET protocol available, support web configure, configuration upload and reload, operation permission setting and management
Maintenance

system log available.
Fault detection and report.
support online updating.

Other
time synchronization interior RTC, it could time automatic synchronization, offer standard port, to keep sync. To time server inside the system.
alarm input support network alarm input
alarm output alarm switching value output and network alarm output
Alarm Processing Multiple alarm event processing mode, manual and automatical.
Screen control video screen control port available.
best resolution identification support best resolution identification
power supply  AC100 to 220
Power consumption  40W
working temperature 0~50℃
working humidity 10%~90%;
structure standard structure design
