In General

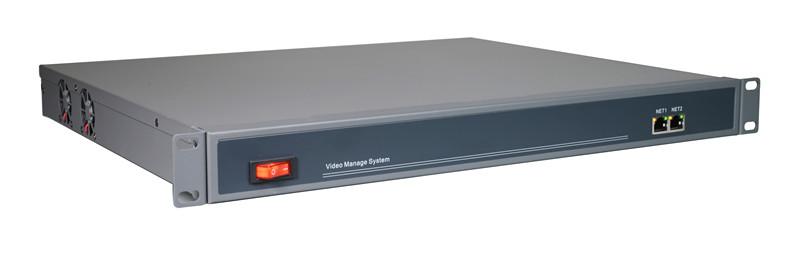

PM60MA3H4H-12H Network matrix switcher is latest decoding matrix and ip decoder, can decode and display stream from ip cameras, platform of H265/264 & RTSP, it is also a Video Wall Controller system with modular chassis, with maximum 4ch HDMI input or 16ch hdmi output.

This hardware configuration offers 1 to 4ch hdmi input and 2 to 16ch hdmi output.

Every HDMI output could decode 2ch 4K or 8ch 1080p, perfect video wall management, including split, splicing, PIP, Plan, Cruise, etc. simple operation like analog system.

Visible netclient software and optional keyboard offers simple operation like analog system.

Features

Hardware configuration

Ø Industrial standard 2.5U chassis, offers maximum 16 hdmi output.

Ø Built-in high-bandwidth back board, high-speed network switch module, and streaming media forwarding module.

Ø HDMI input from 0 to 4ch could be flexibly configured accordingly.

Ø Built-in intelligent fan automatically adjusts the temperature to ensure a stable and reliable system.

System Functions

Ø Pure hardware design, embedded ARM processor, embedded Linux operating system, 7*24 hours stable continuous operation.

Ø Support Quick fault recovery function, it can replace any faulty board, no need to modify the configuration.

Ø Support remote or local configuration, data backup, and data recovery functions.

Ø Support remote or local upgrade and remote restart.

Ø Support data automatic synchronization, firmware version automatic sync.

Ø Support configuration data download, backup and upload.

Ø Support network stream load balance.

Ø provides multi-network port hot backup to realize intelligent video migration

Ø has smooth video playback technology, which can effectively avoid the problem of jams caused by network transmission;

Ø with internal streaming media forwarding function

Ø with stream adaptive connection, automatically connect the best resolution stream according to the window size.

Matrix Functions

Ø Compatible with ONVIF, RTSP, RTP.

Ø Support access of GB28181.

Ø Support signal source organization tree function, tree group management of various video signal sources, can classify and name different input signal source types, support keyword search, quickly find signal sources.

Ø Video Real time preview on visible net client.

Ø It can intuitively drag and drop control signal switching, window opening, superposition, roaming, size adjustment, full screen, close and other functions, support the entire screen arbitrary custom layout, convenient to quickly achieve the users’ screen layout; Support screen real-time echo function, software screen layout and splicing screen fully synchronized, what you see is what you get.

Ø Support KVM control, it can remotely control the Tx of KVM in visible client.

Ø Support audio output, can achieve monitoring, broadcast, etc.

Ø Support manual switch and automatic switch, includes patrol switch, group switch, segmentation switch.

Ø Support plan configuration, call and switch.

Ø Support through the alarm gateway access mainstream brand alarm host to achieve alarm linkage image pop-up display and alarm sound and light output .

Ø Support ptz control, it can control 8 directions of ptz, iris, zoom, speed, preset.

Ø Support OSD, It can superimpose camera title, system information, alarm, audio and other information, and flexibly configure font position, color, and size.

Decoding/splice functions

Ø Support to decode stream of H.265, H.264.

Ø Support multicast and unicast.

Ø Support power supply hot backup,power supply module support plug and play.

Ø Support split display at 1/4/6/8/9/10 /16/25/64 or user-defined split.

Ø Support entire screen splicing to display one video or user-defined splicing.

Ø Support window opening, pulling, cruise, roaming, etc.；

Ø Support control of keyboard, pad, etc.

Ø Support screen base map.

Ø Support screen enlarge and window enlarge.
