Available Models

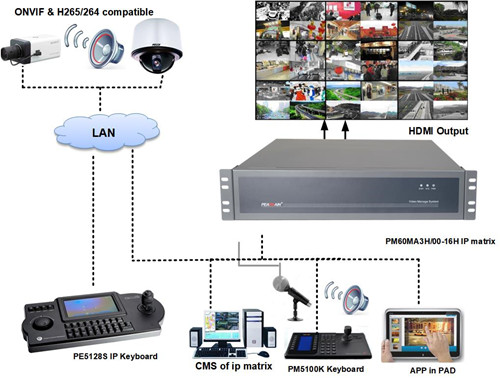

PM60MA3H/00-16H with 16ch hdmi output

PM60MA3H/1H-15H with 1ch hdmi input and 15ch HDMI output

PM60MA3H/00-12H with 12ch hdmi output

PM60MA3H/1H-11H with 1ch hdmi input and 11ch HDMI output

Physical

output

Up to 16ch HDMI by one chassis

HDMI output resolution

1024×768P@60Hz,1280×720P@60Hz, 1366×768P@60Hz, 1920×1080P@30Hz, 3840×2160@30Hz

input

Optional physical input of 1ch HDMI, resolution up to 4K

Video

Video decoding

H.265,H.264

Video stream resolution

4K,1080P,1080I,720P,D1

Decoding capability

One modular can decode 25ch 4K or100ch 1080p or 200ch 720p or 400ch D1.

Splicing

16 by one chassis, maximum 64 by 2 chassis cascading, it can splice the monitors connected on HDMI output. user-defined splicing.

Splitting

1/4/6/8/9/16/25/64, and user-defined splitting

Windowing and Cruise

support, it can set windowing on monitors to have maximum 128 layers' windowing.

OSD display

it can display OSD info. including window number, channel number, label, etc.

Audio

encoding and decoding standard

support G.711, G.726, ADPCM

Audio enable/mute

it can turn on all audio and it can set one channel by quick operation.

input

support audio embedded in HDMI input or individual input.

Maintenance

Basic applications

multiple user log in and log out, maximum 72 users on-line at same time. operation permission definition; Supports video switching and controlling.

Support Segmentation display mode management.

Automatic inspection, setting and call. Supports rollback  playing.

 System management and configuration

PETNET protocol available, once integration,the third party can manage this decoder, configuration upload and reload, operation permission setting and management

Maintenance

system log available.

Fault detection and report.

support online updating.

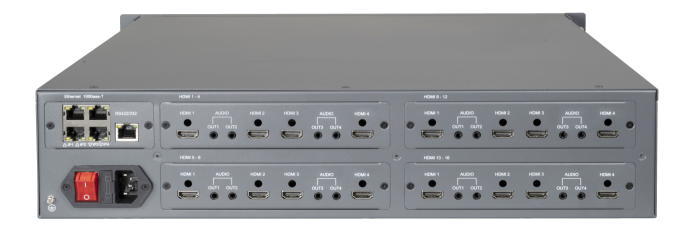

Port and connectors

Ethernet

4ch, 1000Mbps adaptive RJ45 port，1 master and 3 slave

Audio input

No physical input of audio

Audio output

Maximum 16ch, one modular with 1 audio output of Ф3.5 socket

RS232/422

 1

Other functions

Second development

support, SDK available

Time synchronization

internal RTC, it support automatic time sync. for multiple device.

offers PENET protocol, it can synchronize time of time server.

Alarm input

support network alarm info. access.

Alarm process

support automatic or manual alarm process.

Monitor control

offers control port of monitor to control the monitors.

Stream self-adaptive

Support stream self-adaptive function, it can close this function, it can automatically choose main/sub stream to output to monitors.

Stream media forwarding

embedded Stream media forwarding, one camera takes steam one time.

smooth playing function

support smooth playing function, it can automatically adjust and optimize stream stuck or pause caused by network transmission.

Decoding delay

150ms maximum

Power supply

AC100V～230V.

 optional to have second power supply modular for stand by.

Power consumption

150W Maximum

Working temperature

0～50℃

Working humidity

10%～90%；

Dimension

530.0mm(W)×510.0mm（D）×220.0mm（H）

Gross/Net weight

8.0KG/6.2KGS
